Federal

Dyer, Sub-pattern II



DIAMETER: 6.9 inches
GUN: Rifled 42-pounder Smoothbore, 7-inch Caliber
LENGTH: 14 inches
WEIGHT: About 84 pounds
CONSTRUCTION: Common Shell
SABOT: Lead
FUZING: Wooden Fuze Plug

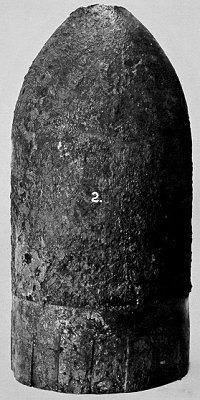

This specimen is the one usually noted.  They were primarily used by the Navy on inland waters.  However some Army use was made.  The sabot, which is three and one quarter inches high is cast on the base of the projectile body which has six ribbed flanges to hold it in place.  They seem to have stayed on the projectile quite well.  This specimen was recovered from Vicksburg, Mississippi.  Most of this pattern have been recovered from Island Number 10 along the Mississippi River in Tennessee.
