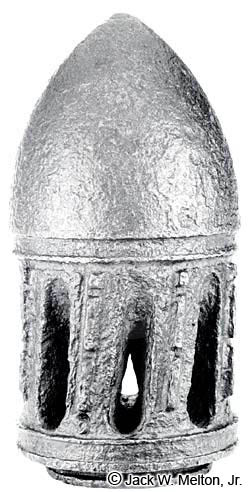

Federal

James,
Pattern I



DIAMETER:  3.72 inches
GUN:
14-pounder James rifle, 3.8-inch caliber
LENGTH:
  7 3/8 inches
WEIGHT:
11 pounds 14 ounces
CONSTRUCTION:
Solid shot
SABOT:
Lead ring covered with a tin sleeve (missing)
FUZING:
None

This is a variant of the James Pattern I projectile.  It is commonly called a tie-ring James, and is only found in 3.8-inch caliber.  The tie-ring solid shot of this variety is extremely rare and the authors have only seen three specimens.  To learn more about the inventor, Charles T. James, click here.
