Confederate

Read



DIAMETER:  2.94 inches
GUN:  3-inch wrought iron (ordnance) rifle
LENGTH:  7 1/4 inches
WEIGHT:  8 pounds 2 ounces
CONSTRUCTION: Shell
SABOT:  Copper ring
FUZING:  Wooden fuze plug, paper time fuze

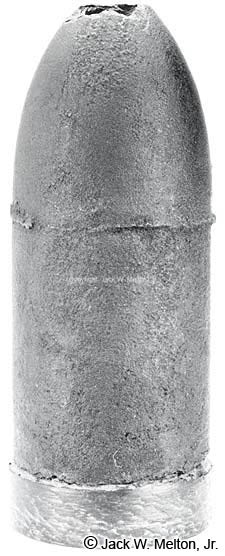

 3-inch Read Shell Smooth Sided High Band
This is an unfired smooth-sided Read with a high copper sabot cast flush with the side of the projectile body.  Notice the crude mould seam around the upper third of the projectile; Confederate mould seams usually ran longitudinally.  This pattern of Read projectile is scarce.
