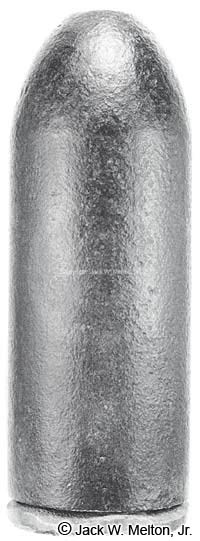

20-pounder Read Shell

Confederate

Read

DIAMETER: 3.62 inches
GUN: 20-pounder Parrott rifle, 3.67-inch caliber
LENGTH: 10 inches
WEIGHT: 20 pounds 8 ounces
CONSTRUCTION: Case shot
SABOT: Copper ring
FUZING: Threaded fuze plug (missing)

The above pictured projectile was found at Gettysburg, Pennsylvania. When emptied, the case-shot material was found to consist of lead castings and bullets. It has a thick copper ring sabot and a lathe dimple in the base. It is similar in appearance to the Federal 20-pounder Parrott projectile pictured here.
