Confederate
Selma
DIAMETER: 2.96 inches
GUN: 3-inch rifle
LENGTH: 7 1/2 inches
WEIGHT: 7 pounds 8 ounces
CONSTRUCTION: Shell
SABOT: Copper plate
FUZING: Wooden fuze plug, paper time fuze
|
Confederate
DIAMETER: 2.96 inches |
|
||

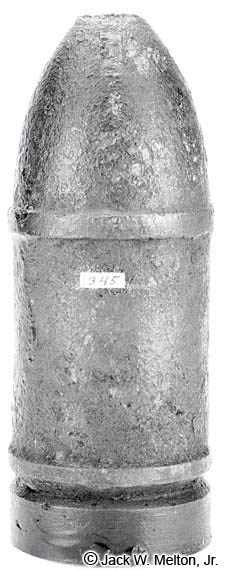

| This specimen is similar in appearance to the Read pattern in this example. The copper sabot is continuous across the bottom of the recessed base. The bourrelets are narrower and the lubrication groove is much smaller than normally seen. This projectile was manufactured by the Selma Arsenal in Alabama. | ||||
