Confederate

Read



DIAMETER:  2.45 inches
GUN:  2.5-inch Blakely rifle
LENGTH:  6 7/8 inches
WEIGHT:  5 pounds 12 ounces
CONSTRUCTION:  Shell
SABOT:  Copper ring
FUZING:  Wooden fuze plug, paper time fuze

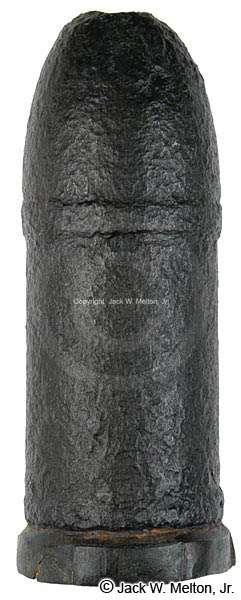

 2.5-inch Read Shell

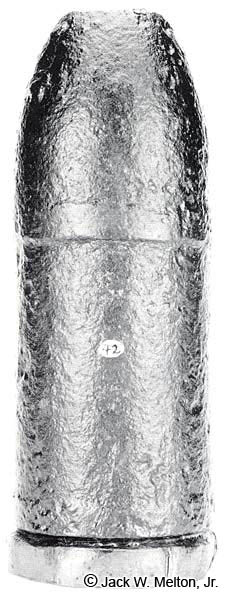

Notice the six saw tooth rifling marks from the 2.5-inch Blakely rifle on the sabot.  Specimens have been recovered from Atlanta Campaign sites, and some have 2.5-inch Read Shellbeen found to have segmented interiors.  The 2.5-inch Britten projectile was also used in the 2.5-inch Blakely rifle.  Another Read example is shown below.
