Confederate Conversion

Dyer



DIAMETER:  2.92 inches
GUN:  3-inch rifle
LENGTH:  7 1/4 inches
WEIGHT:  10 pounds 2 ounces
CONSTRUCTION:  Case shot
SABOT:  Lead cup
FUZING: Confederate copper fuze plug, paper time fuze

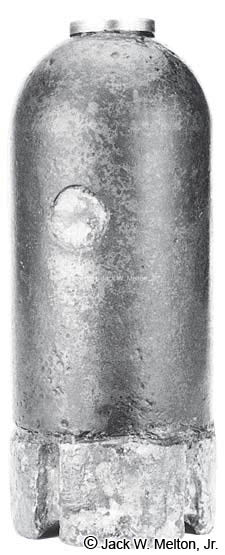

 3-inch Dyer Shell Side-loader
The lead side-loader plug is 7/8" in diameter.  The lead sabot has four flame grooves.  There are no crossed straps on  the base of the sabot on this specimen.  Only a few side-loader Dyer projectiles are known to exist.  To see another example click here.
